PTFE Non-Asbestos Packings from PTFE Products Manufacturer in India
Hindustan Nylons - leading PTFE Non-Asbestos Packings Manufacturer in India, manufactures widest Range of PTFE Non-Asbestos Packings in variety of grades & styles.
The standard PTFE products include PTFE Universal Rope, PTFE Braided Packings, Graphite Blended PTFE Braided Packings, PTFE & Graphite PTFE Combination Braided Packings, Pure Expanded Graphite Packing, Aramid Packing Impregnated with PTFE, Aramid cornered PTFE Braided Packing, Aramid cornered Graphite Blended PTFE Packing.
Sterling Brand Non Asbestos Packing / Mergollar
Hindustan Nylons manufactures Sterling Brand Non Asbestos packings in variety of styles & sizes for Sealing & Gasketing of static, Rotary & Reciprocating Joints.

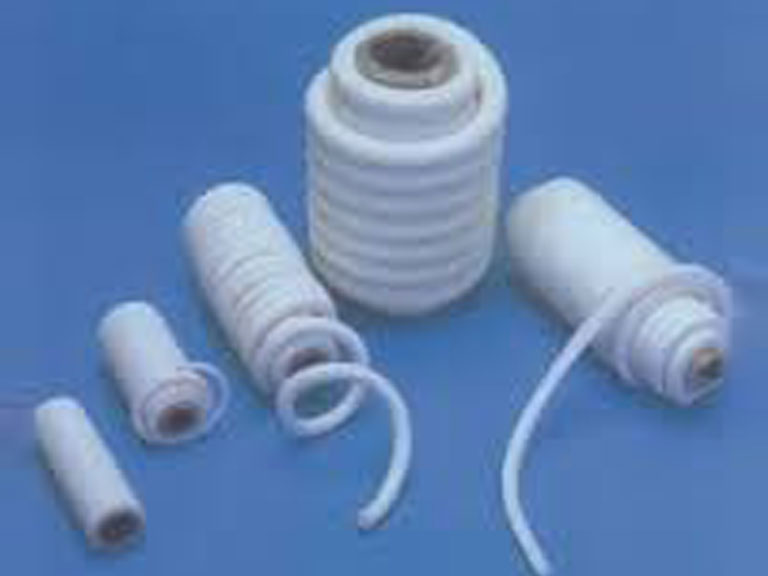

PTFE Universal Rope
Style No: HN-111
Ideal For: Static Seal for Valves & Gasketing
- Good chemical resistance, inert to most media
- Soft & Resilient
- Self Lubrication/ Low coefficient of friction
- High Temperature Resistance
Service Conditions:
Temp (°C): -100~260
Pressure (kg/cm²): 20P, 50R, 100V
PH Range: 0-14
Speed (m/s): 4P, 1R
Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals
- Non Drinking Water
- Chilled Water
- Warm Water
- Hot Water
- Mild Acids & Alkalies
- Paints & Dyes
- Adhesives
- Petroluum
- Paper Pulp
- Oils & Greases
- Mineral Oil
Forms: Round / Square Section, Rope form
Sizes Available: 3mm ~ 25mm
Packing Size: 5m ~ 30m

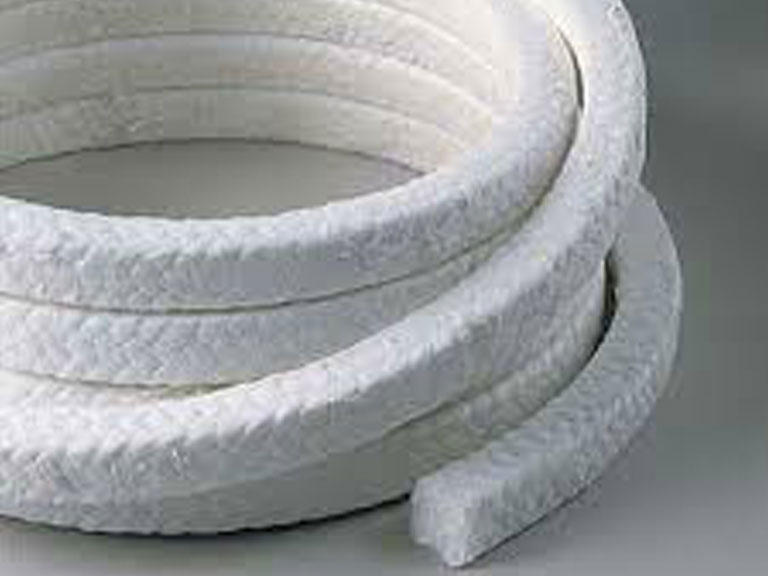

PTFE Braided Packing - (Dry) with / without silicon core
Style No: HN-222
Ideal For: Low cost, Universal packing for Water, Gas, Mild Chemicals
- Good chemical resistance, inert to most media
- Good Dimensional Stability
- Soft & Resilient
- Self Lubrication / Low coefficient of friction
- High Temperature Resistance
Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 20P, 100R, 250V
PH Range: 0-14
Speed (M/s): 10P, 1R
Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals
- Drinking Water
- Non Drinking Water
- Chilled Water
- Warm Water
- Hot Water
- Steam Water, Steam & Vapous
- Mild Chemicals
- Gaseons Environment
- Paints & Dyes
- Adhesives
- Petroluum
- Liquor & Alcohol
- Paper Pulp
- Oils & Greases
- Mineral Oil
Forms: Square Section, Ring & Rope form
Sizes Available: 3mm ~ 25mm
Packing Size: 1kg ~ 10kg depending upon size

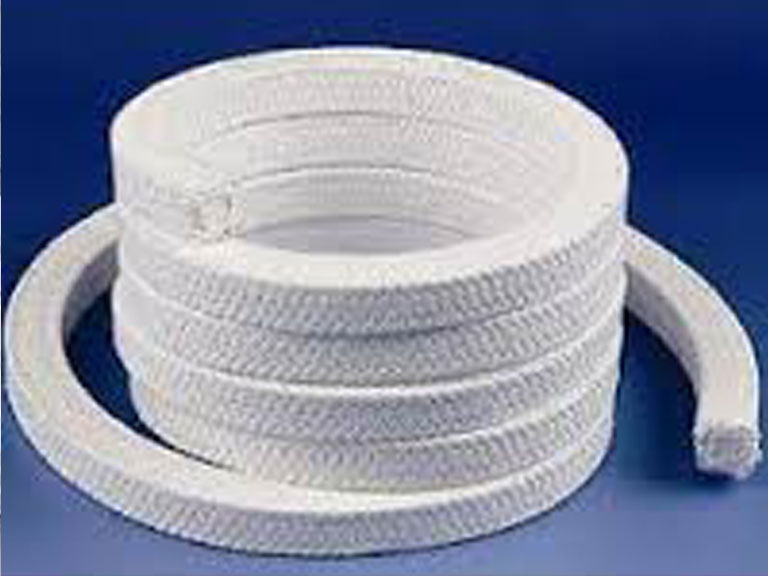

PTFE Braided Packing Impregnated with PTFE Dispersion - with / without silicon core
Style No: HN-333
Ideal For: Universal packing for Medical, Juices, Pharmaceutical, Liquor & Alcohol, Food Stuff Application (FDA component)
- Good chemical resistance, inert to most media
- Good Dimensional Stability
- Soft & Resilient
- High Density
- Self Lubrication / Low coefficient of friction
- Suitable to food contact application
- High Temperature Resistance
- Excellent volume stability
- Suitable to Medical / Pharmaceutical Applications
- Low Permeability
Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 50P, 150R, 250V
PH Range: 0-14
Speed (M/s): 5P, 1R
Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals
- Drinking Water
- Liquor & Alcohol
- Juice
- Pharmaceauticals
- Food Stuff
- Medical
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

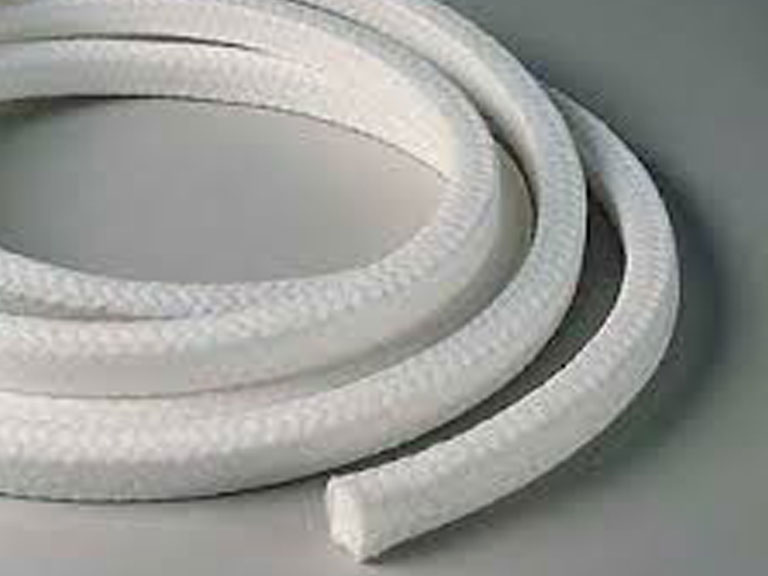

PTFE Braided Packing Impregnated with PTFE Dispersion & Lubricated with inert High temperature Lubricant with / without silicon core
Style No: HN-444
Ideal For: Universal packing for Low friction, Aggressive (Non-abrasive) Chemical & Corrosive Gases
- Good chemical resistance, inert to most media
- Low startup friction
- Good Dimensional Stability
- Soft & Resilient
- Self Lubrication / Low coefficient of friction
- High Temperature Resistance
- Excellent volume stability
- Low Permeability
Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 20P, 100R, 200V
PH Range: 0-14
Speed (m/s): 15P, 2R
Not Recommended For: Fluorine, Fluorine complexes & Alkali Metals
- Gaseous Environment
- Petrochemicals
- Aggressive Chemicals
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

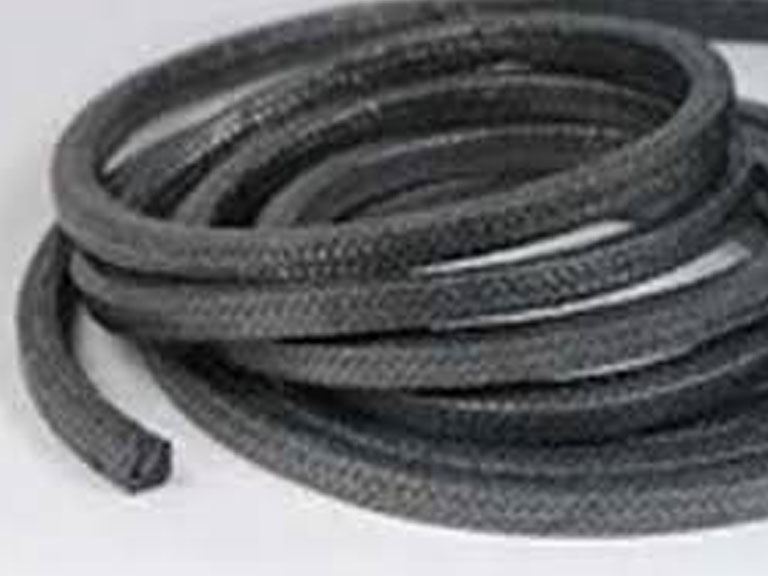

Graphite Blended PTFE Braided Packing, Lubricated with / without inert high temperature lubricant
Style No: HN-555
Ideal For: Low friction for Universal packing for Aggressive & Viscous chemicals.
- Good chemical resistance, inert to most media
- Low startup friction
- Good Dimensional Stability
- Good Heat dissipation properties
- Soft & Resilient
- Self Lubrication / Low coefficient of friction
- Low Shaft wear
- No Jamming on shaft, lower shaft erosion
- High Temperature Resistance
- Excellent volume stability
Service Conditions:
Temp (°C): -240~300
Pressure (kg/cm²): 25P, 250R, 250V
pH Range: 0-14
Speed (m/s): 20P, 3R
Not Recommended For: Fluorine, Fluorine complexes, Alkali Metals, Nitric Acid, Oxygen & Oxidizing Agents
- Paints & Dyes
- Paper Pulp
- Oils & Greases
- Mineral Oil
- Adhesives
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

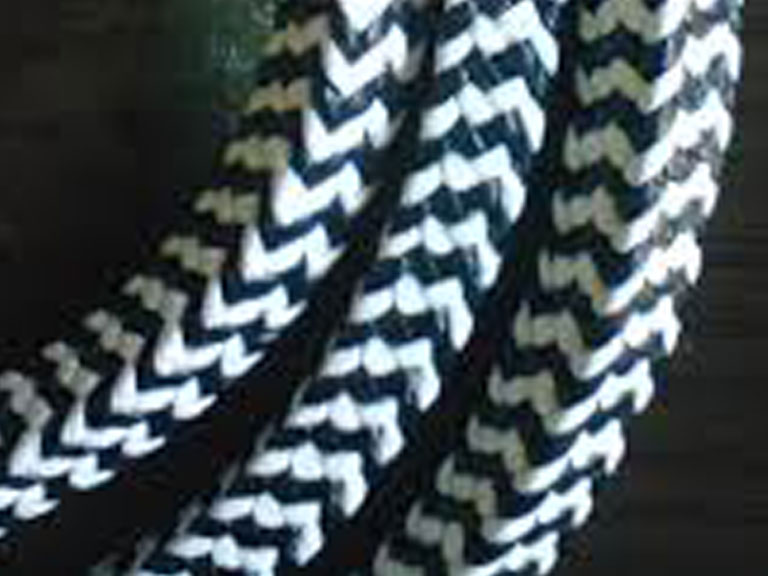

PTFE & Graphited PTFE combination Braided Packing
Style No: HN-666
Ideal For: Universal packing for Low friction applications for Aggressive chemicals & Corrosive Gases
- Good chemical resistance, inert to most media
- Low startup friction
- Good Dimensional Stability
- Good Heat dissipation properties
- Soft & Resilient
- Self Lubrication / Low coefficient of friction
- Low Shaft wear
- No Jamming on shaft, lower shaft erosion
- High Temperature Resistance
- Excellent volume stability
Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 20P, 100R, 250V
pH Range: 0-14
Speed (m/s): 25P, 3R
Not Recommended For: Fluorine, Fluorine complexes, Alkali Metals, Nitric Acid, Oxygen & Oxidizing Agents
- Non Drinking Water
- Chilled Water
- Warm Water
- Hot Water
- Steam Water
- Mild Acids & Alkalies
- Petroluum
- Liquor & Alcohol
- Paper Pulp
- Oils & Greases
- Mineral Oil
- Agreesive Chemicals
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

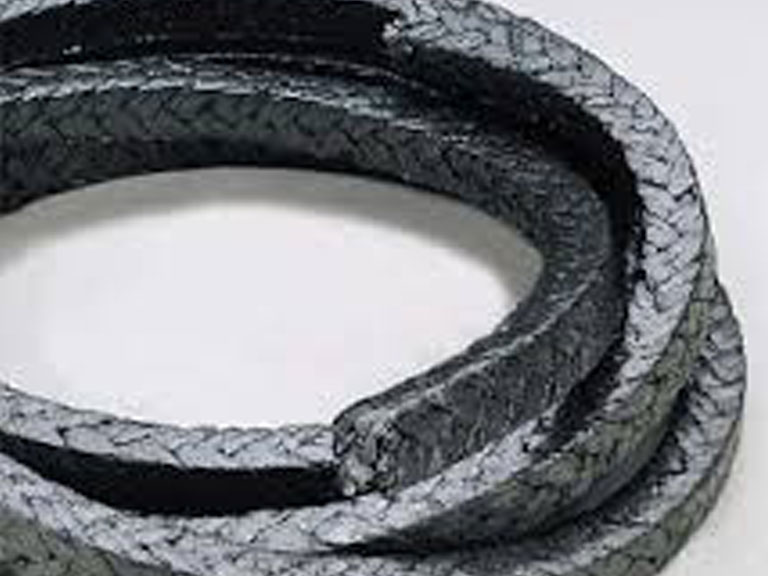

Pure Expanded Graphite Packing - with / without Reinforcement Metallic wire
Style No: HN-777
Ideal For: Universal packing for High Temperature - Aggressive or Abrasive or Viscous chemicals
- Good chemical resistance, inert to most media
- Low startup friction
- High Density
- Good Dimensional Stability
- Good Heat dissipation properties
- Self Lubrication / Low coefficient of friction
- Suitable to food contact application
- Low Shaft wear
- No Jamming on shaft, lower shaft erosion
- Very High Temperature Resistance
- No Heat Buildup, last Resistance to Abrasive / Erosion media
- Excellent volume stability
Service Conditions:
Temp (°C): -100~650
Pressure (kg/cm²): 35P, 150R, 350V
pH Range: 0-14
Speed (m/s): 25P, 2R
Not Recommended For: Fluorine, Fluorine complexes, Alkali Metals, Nitric Acid, Oxygen & Oxidizing Agents
- Non Drinking Water
- Sea Water
- Ash Water
- Soiled Water / Mud
- Paints & Dyes
- Adhesives
- Petrolium Tar / Bitumen
- Sewage
- Abhrasive Slurry
- Paper Pulp
- Oils & Greases
- Mineral Oil
- Agreesive Chemicals
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

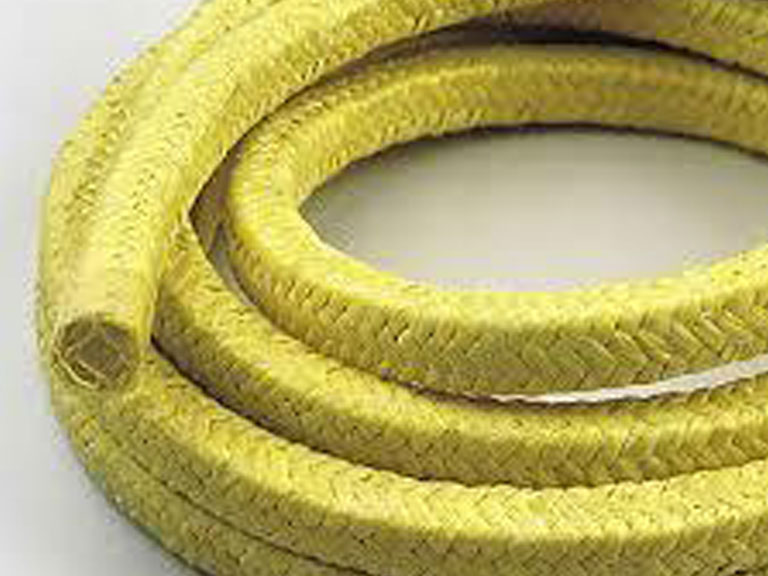

Aramid Packing Impregnated with PTFE & lubricated with inert high temperature lubricant
Style No: HN-888
Ideal For: Universal packing for Abrasive & Viscous Liquids
- Good chemical resistance, inert to most media
- high Mechanical strength
- High Density
- Good Dimensional Stability
- Self Lubrication / Low coefficient of friction
- Low Shaft wear
- No Jamming on shaft, lower shaft erosion
- High Temperature Resistance
- No Heat Buildup, last Resistance to Abrasive / Erosion media
- Excellent volume stability
Service Conditions:
Temp (°C): -240~300
Pressure (kg/cm²): 25P, 200R, 275V
pH Range: 0-14
Speed (m/s): 25P, 2R
Not Recommended For: Fluorine, Fluorine complexes, Alkali Metals, Nitric Acid, Oxygen & Oxidizing Agents
- Sea Water
- Ash Water
- Soiled Water / Mud
- Paints & Dyes
- Adhesives
- Petroluum / Tar / Bitumen
- Sewage
- Abhrasive Slurry
- Aggressive Chemicals
- Abrasive & Viscous Slurry
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

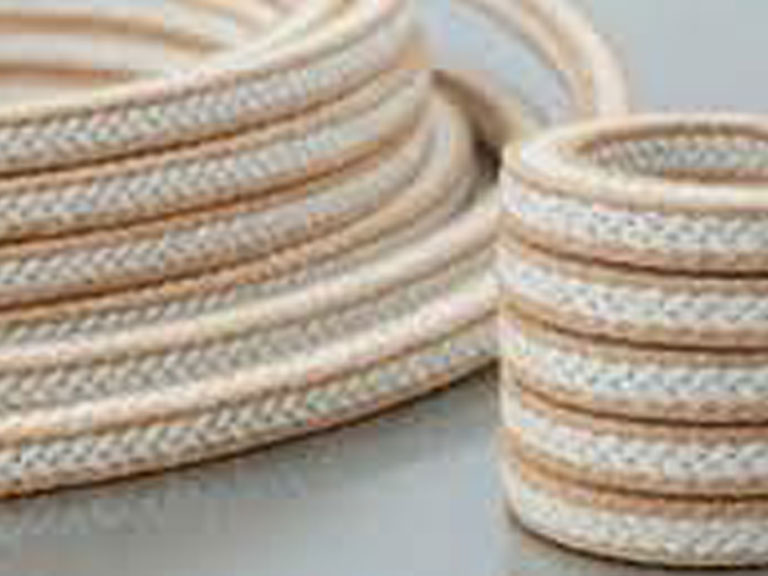

Aramid cornered PTFE braided packing
Style No: HN-999
Ideal For: Universal packing for High Pressure Application for Viscous Liquids
- Good chemical resistance, inert to most media
- High Mechanical strength
- High Density
- Good Dimensional Stability
- Self Lubrication/ Low coefficient of friction
- Low Shaft wear
- No Jamming on shaft, lower shaft erosion
- High Temperature Resistance
- No Heat Buildup, last Resistance to Abrasive / Erosion media
- Excellent volume stability
Service Conditions:
Temp (°C): -200~260
Pressure (kg/cm²): 150P, 250R, 250V
PH Range: 2-12
Speed (m/s): 10P, 2R
Not Recommended For: Fluorine, Fluorine complexes, Alkali Metals, Nitric Acid, Oxygen & Oxidizing Agents
- Hot Water
- Steam Water
- Mild Acids & Alkalies
- Gaseons Environment
- Paints & Dyes
- Adhesives
- Paper Pulp
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

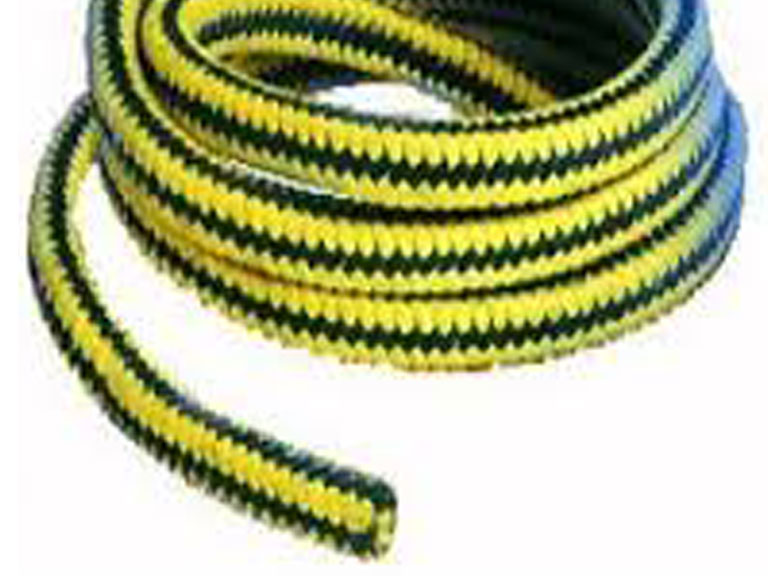

Aramid cornered Graphite blended PTFE packing
Style No: HN-1010
Ideal For: Universal packing for Aggressive, Viscous & Abrasive Liquids
- Good chemical resistance, inert to most media
- High Mechanical strength
- Low startup friction
- High Density
- Good Dimensional Stability
- Good Heat dissipation properties
- Soft & Resilient
- Self Lubrication / Low coefficient of friction
- Suitable to food contact application
- Low Shaft wear
- No Jamming on shaft, lower shaft erosion
- High Temperature Resistance
- No Heat Buildup, last Resistance to Abrasive / Erosion media
- Excellent volume stability
Service Conditions:
Temp (°C): -240~300
Pressure (kg/cm²): 25P, 250R, 250V
PH Range: 0-12
Speed (m/s) 20P , 5R
Not Recommended For: Fluorine, Fluorine complexes, Alkali Metals, Nitric Acid, Oxygen & Oxidizing Agents
- Sea Water
- Ash Water
- Solied Water / Mind
- Petroluum Tar / Bitumen
- Sewage
- Abhrasive Slurry
- Aggressive Chemical
- Abrasive & Viscous Slurry
Forms: Square section, Ring & Rope form
Sizes Available: 3~25mm
Packing Size: 1~10 kg depending upon size

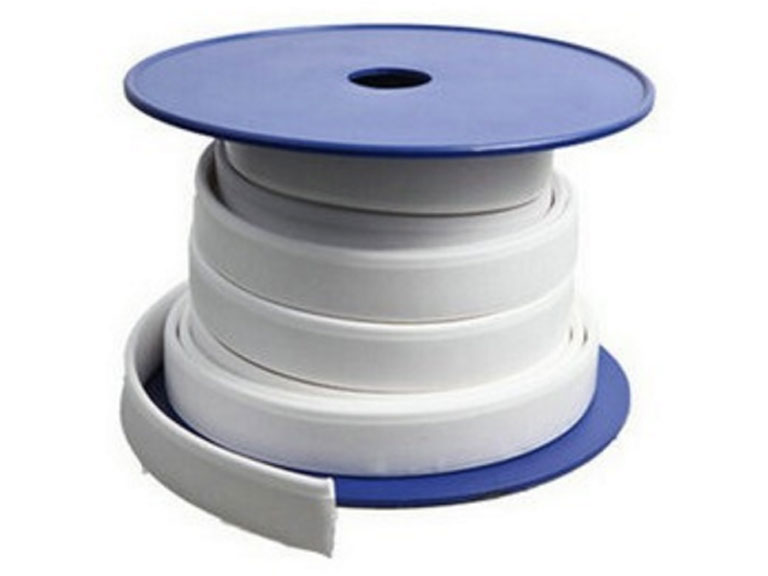

Expanded PTFE Joint Sealant Tape with/without Adhesive Backing
Style No: HN-1011
Ideal For: Static Seal as Gasket
- Good chemical resistance, inert to most media
- Soft & Resilient
- Self Lubrication/Low coefficient of friction
- High Temperature Resistance
Service Conditions:
Temp (°C): -240 to +260
Pressure (kg/cm²): 200
PH Range: 0~14
Not Recommended For: Fluorine complexes & Alkali Metals
Service Medium:- Non Drinking Water
- Chilled Water
- Warm Water
- Hot Water
- Mild Acids & Alkalies
- Paints & Dyes
- Adhesives
- Petroluum
- Paper Pulp
- Oils & Greases
- Mineral Oil
Forms: Rectangular Rope
Sizes Available / Standard Size
| Width (mm) | Thickness (mm) | Length (mtrs) |
| 5 | 2 | 30 |
| 5 | 3 | 30 |
| 7 | 2.5 | 30 |
| 10 | 3 | 20 |
| 12 | 4 | 10 |
| 14 | 3 | 10 |
| 14 | 5 | 10 |
| 17 | 6 | 10 |
| 19 | 5 | 5 |
| 20 | 3 | 5 |
| 20 | 5 | 5 |
| 20 | 7 | 5 |
| 25 | 1 | 10 |
| 25 | 5 | 5 |
| 25 | 7 | 5 |
| 25 | 10 | 5 |
| 30 | 3 | 5 |
| 30 | 5 | 5 |
| 40 | 3 | 5 |
| 40 | 5 | 5 |
| 45 | 3 | 5 |
| 50 | 3 | 5 |
| 55 | 3 | 5 |
| 70 | 3 | 5 |
